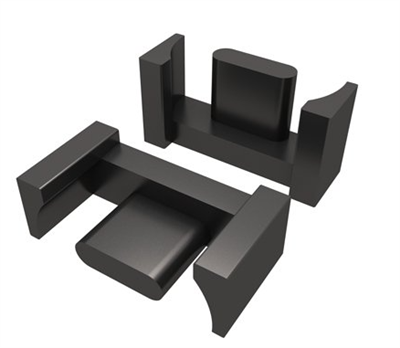

FERRIT CORE UU80/65/30
1.Valè yo te jwenn ak nwayo toroidal Φ25 × Φ15 × 10 nan tanperati chanm sof si otreman espesifye.
2.Typical valè,*1Test kondisyon (f=400kHz,B=50mT),*2Test kondisyon （f=500kHz,B{=50mT).
|
Dimansyon (mm) |
Paramèt debaz yo |
||
|
A |
80.0+2.0/-1.0 |
C1 |
{0}.485mm-1 |
|
B |
65.0±0.5 |
Le |
314 mm |
|
C |
30.0±0.5 |
Ae |
647 mm2 |
|
D |
21.5±0.5 |
Ve |
203000 mm3 |
|
E |
37.0 (Ref) |
Mas |
�% 89�1010 g/prs |
|
F |
43.0±1.0 |
||
Karakteristik ELEKTRIK
|
Atik |
spektak |
mezi metòd ak kondisyon yo |
Enstriman tès la |
|
Enduktans |
AL{0}}±25% (nH/N2) |
1kHz/0.1V, 10Ts, 23±2 degre |
Agilent HP4284A LCR mèt oswa ekivalan |
|
Pèt pouvwa Pc |
Pc Mwens pase oswa egal a 4.0 W |
25kHz / 100mT, 100 degre |
Iwatsu SY8216 B-H analizè oswa ekivalan |
Pouvwa materyèl ferit LP3
|
Karakteristik |
Senbòl |
Inite |
Kondisyon |
LP3 |
|
Premye pèmeyabilite |
μi |
2300±25% |
||
|
Faktè pèt relatif |
tanδ/μi |
×10-6 |
100kHz |
＜4 |
|
Dansite flux saturation*(1194A/m) |
Bs |
mT |
25 degre |
500 |
|
100 degre |
390 |
|||
|
Remanans* |
Br |
mT |
130 |
|
|
Koersivite* |
Mak |
A/m |
13 |
|
|
Pèt pouvwa * (f=100kHz, B{=100mT) |
Pcv |
kW/m3 |
25 degre |
|
|
80 degre |
90 |
|||
|
100 degre |
70 |
|||
|
Pèt pouvwa * (f=100kHz, B{=200mT) |
Pcv |
kW/m3 |
25 degre |
650 |
|
60 degre |
||||
|
80 degre |
450 |
|||
|
100 degre |
410 |
|||
|
120 degre |
||||
|
Tanperati Curie |
Tc |
degre |
Pi gran pase oswa egal a 215 |
|
|
Rezistivite* |
ρ |
Ω·m |
5 |
|
|
Dansite* |
d |
kg/m3×103 |
4.8 |
Remak: 1.Valè yo te jwenn ak nwayo toroidal Φ25 × Φ15 × 10 nan tanperati chanm sof si otreman espesifye.
2. * Valè tipik,*1Kondisyon tès (f=400kHz, B=50mT),*2Kondisyon tès (f=500kHz, B=50mT).
